A warp knitting machine is a high-speed textile machine designed for producing tricot, raschel, lace, and technical fabrics with precision, efficiency, and consistent quality in industrial applications.

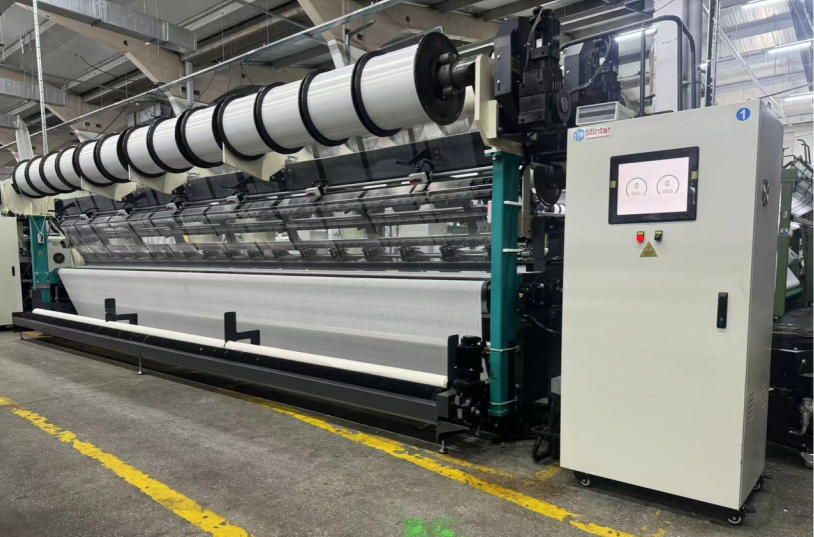

Warp knitting machine(Tricot )--HKS-EL
Application：High-performance warp knitting machine (four guide bars)to produce all kinds of tricot fabrics , such as elastic fabrics ,pile fabrics , automotive textiles upholstery fabrics cleaning textiles, ect. Wide range of applications allows quick reactions to the demands of the market.
Product features:
•lopping components:
Equipped with carbon needle bars, make the machine more stable on high speed.
• lopping guide bars
Four lopping guide bars，more varied pattern design are available.

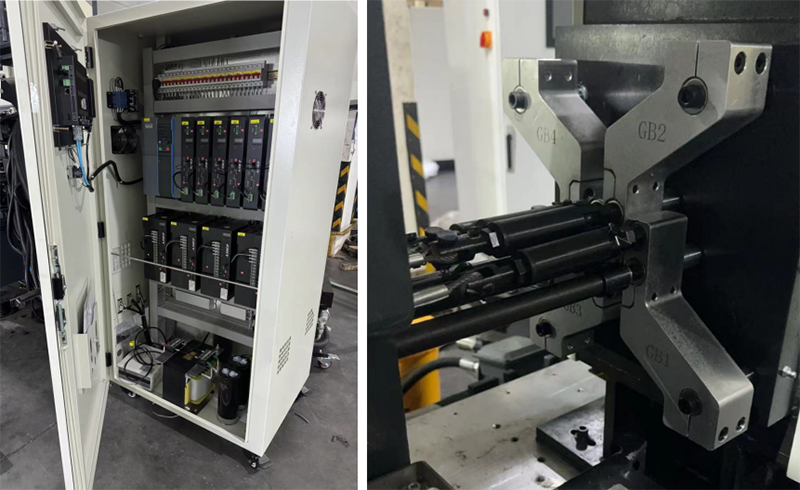

•Electronic control system
Equipped with advanced EBC and EL system,Simple operation and higher efficiency.
Main specification
|
Working width |
218/248/268/295/340/366INCH |
|
Gauge |
E12,E18,E20,E24,E28,E32,E36 |
|
Bars number |
2 bars,3 bars,4 bars,5 bars, 6 bars |
|
Needle type |
Compound needle (GROZ-BECKERT) |
|
Bars / knitting elements |
Individual needle bar with compound needles, slider bar with |
|
Main power |
11KW(218inch), 15KW(248/268/295/340),18KW(360inch) |
|
Speed |
20-2800RPM |
|
Design file |
KMO, TXT or manual input |
|
Integrated monitoring systems |
Integrated Laserstop |
|
Pattern drive |
EL -drive with four electronically controlled motors 218INCH/248 INCH/268 INCH/295INCH: 4KW servo motor. 340 INCH/360INCH: 5KW/7.5KW servo motor |
|
EL lead screw |
THK(JAPAN) 3030 （Effective working length: 6–12 cm） |
|
Let-off device |
EBC(2.5KW servo motor) |
|
Take-up device |
Four-roller system |
|
Batching device |
Batching system with surface winding |
|
Oil supply |
Heating and cooling by means of air heat exchanger Option: water cooling system |

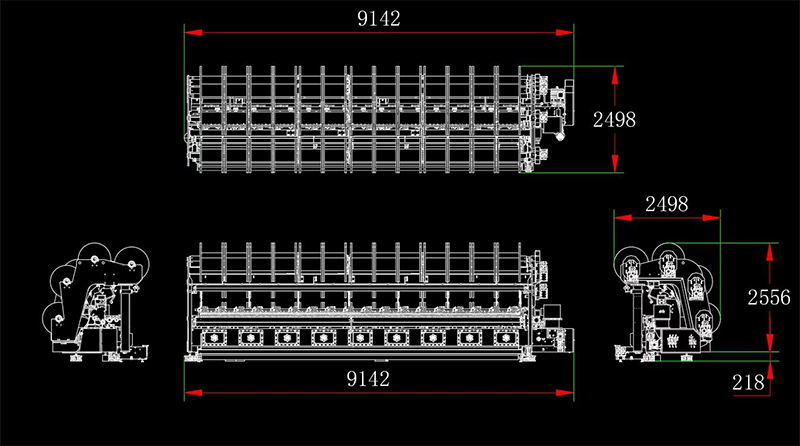

HKS4-EL Outline drawing(295”)
Tricot Machine (HKS2,HKS3,HKS4,HKS5,HKS6)
Application：High-performance warp knitting machine (four guide bars)to produce all kinds of tricot fabrics , such as elastic fabrics ,pile fabrics , automotive textiles upholstery fabrics cleaning textiles, ect. Wide range of applications allows quick reactions to the demands of the market.
