Application：High-performance warp-knitting machine with course-oriented weft-insertion system for the production of lightweight fabrics，lining cloth, garment fabric, and Upholstery fabric.
Product features:
• Production of lightweight fabrics
• Up to two stitch-forming guide bars
• Weft creel with pre-winders
Main specification
|
Machine type |
HKS2-MSUS,HKS3-MSUS |
|
Working width |
213 INCH ,245 INCH,268INCH(customizable) |
|
Working width reduction |
up to 62 |
|
Gauge |
E6,E12,E14,E18,E24,E28,E32 |
|
Needle type |
Compound needle (GROZ-BECKERT) |
|
No. of guide bars |
2&3 guide bars （Carbon） |
|
Main power |
7.5KW(213inch), 11KW(245inch) |
|
Speed |
20-1500RPM |
|
Weft-insertion system |
Yarn laying carriage with 30 ends（servo motor control） |
|
Pattern drive |
Pattern disc（Option:EL） |
|
Let-off device |
EBC |
|
Take-up device |
Four-roller system |
|
Batching device |
Batching system with surface winding |
|
Integrated monitoring systems |
Integrated Laserstop (Option：Camera system) |

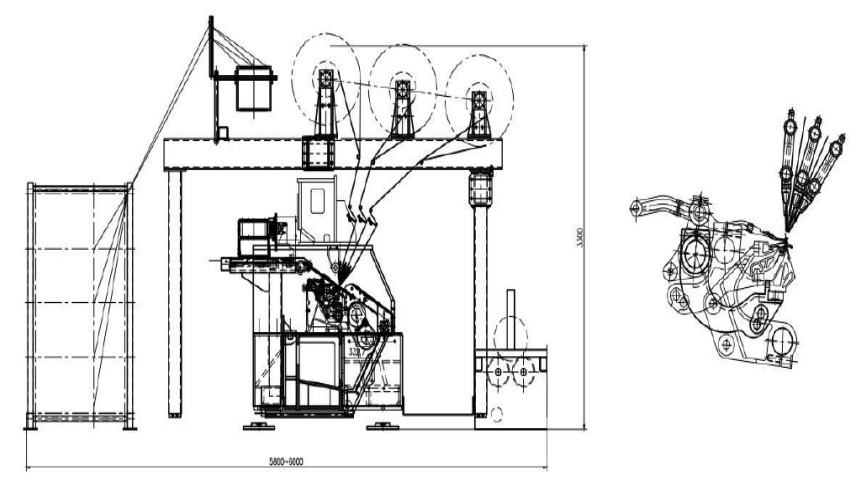

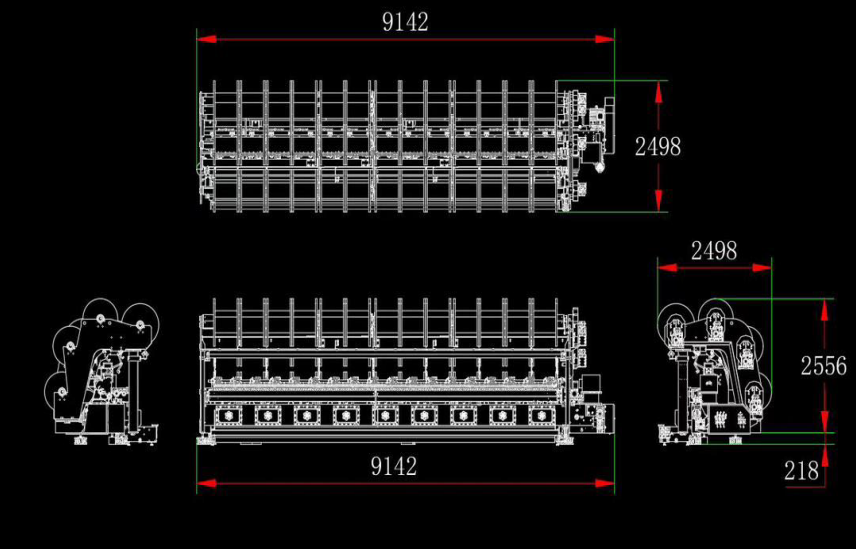

Outline drawing(245”)
